1. Monolithic inorganic material construction.
2. Closed magnetic circuit avoids crosstalk.
3. Suitable for reflow soldering.
4. Shapes and dimensions follow E.I.A spec.
5. Available in various sizes.
6. Excellent solderability and heat resistance.
7. High reliability.
8. The products contain no lead and also support lead-free soldering.

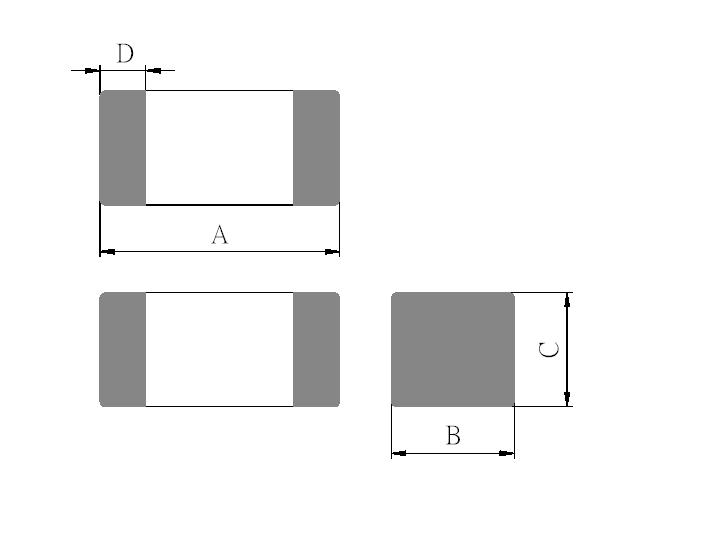

| Size | A(mm) | B(mm) | C(mm) | D(mm) |
| 2016 | 2.0±0.2 | 1.6±0.2 | 1.6±0.2 | 0.5+0.3 |
| 3216 | 3.2±0.3 | 1.6±0.2 | 1.6±0.2 | 0.5±0.3 |
| 3225 | 3.2±0.3 | 2.5±0.3 | 2.5±0.3 | 0.5±0.3 |
| 4516 | 4.5±0.3 | 1.6±0.2 | 1.6±0.2 | 0.5±0.3 |
| 4525 | 4.5±0.4 | 2.5±0.3 | 2.5±0.3 | 0.9±0.6 |
| 4532 | 4.5±0.4 | 3.2±0.3 | 3.2±0.3 | 0.9±0.6 |
 | A: | Series |
| B: | Dimension (L×W ) |
| C: | Material |
| D: | Lead Free Code |
| E: | Impedance (851=850Ω ) |
| F: | Packaging ("T=Taping and Reel,B=Bulk(Bags)" ) |
| G: | Rated Current (15=1500mA ) |
| Part Number | Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current (mA) max. |
|---|---|---|---|---|
| WCB2016KF-251T20 | 250±30% | 100 | 0.05 | 2000 |
| WCB3216KF-501T20 | 500±30% | 100 | 0.07 | 2000 |
| WCB3225KF-601T30 | 600±30% | 100 | 0.042 | 3000 |
| WCB3225KF-102T20 | 1000±30% | 100 | 0.1 | 2000 |
| WCB3225KF-202T12 | 2000±30% | 100 | 0.13 | 1200 |
| WCB4516KF-851T15 | 850±30% | 100 | 0.1 | 1500 |
| WCB4525KF-102T30 | 1000±30% | 100 | 0.06 | 3000 |
| WCB4525KF-162T20 | 1600±30% | 100 | 0.13 | 2000 |
| WCB4532KF-681T40 | 680±25% | 100 | 0.028 | 4000 |
| WCB4532KF-132T30 | 1300±25% | 100 | 0.06 | 3000 |
