SWF

Product Description

1.Ferrite core wire wound construction.

2.High Reliability due to wire wound type construction.

3.Small footprint as well as low profile.

4.Application for Signal Use.

5.100% Lead(Pb) & Halogen-Free and RoHS compliant.

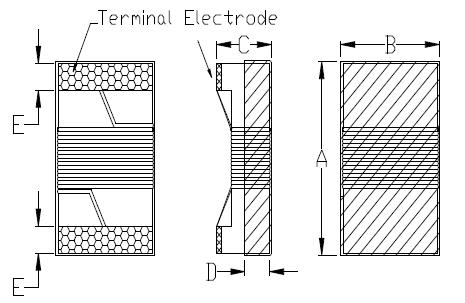

尺 寸 详细参数 规 格

SizeABCDE
SWF1608C1.80 max.1.20 max.1.20 max.0.38 ref.0.35±0.1
SWF2012C2.40 max.1.60 max.1.40 max.0.51 ref.0.44±0.1
SWF2520C2.90 max.2.50 max.2.10 max.1.20 ref.0.55±0.1
SWF3225C3.60 max.2.80 max.2.60 max.0.80 ref.0.55±0.1

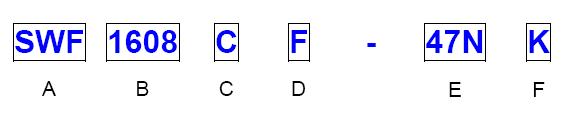

A:Series
B:Dimension (L x W )
C:Application (DC Power Line )
D:Lead free type
E:Inductance (47N=0.047 uH )
F:Inductance Tolerance ("K=±10%,M=±20%" )



搜索：
TAI-TECH Part NumberInductance (uH)ToleranceTest Frequency (Hz)Q min.Test Frequency (MHz)SRF (MHz) min.DCR (Ω) max.Rated Current (mA) max.
SWF1608CF-47N□0.047K,M0.5V/7.96M107.9615000.0751400
SWF1608CF-R10□0.1K,M0.5V/7.96M107.9611500.131400
SWF1608CF-R12□0.12K,M0.5V/7.96M107.9611000.151400
SWF1608CF-R15□0.15K,M0.5V/7.96M107.9610500.151300
SWF1608CF-R18□0.18K,M0.5V/7.96M107.969500.151300
SWF1608CF-R22□0.22K,M0.5V/7.96M107.968000.15950
SWF1608CF-R24□0.24K,M0.5V/7.96M107.968000.31620
SWF1608CF-R27□0.27K,M0.5V/7.96M107.967750.2710
SWF1608CF-R33□0.33K,M0.5V/7.96M107.967250.35620
SWF1608CF-R39□0.39K,M0.5V/7.96M107.966200.39600
