1. High common mode impedance at high frequency
cause excellent noise suppression performance.
2. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
3. Operating temperature-40~+125℃ (Including self - temperature rise)

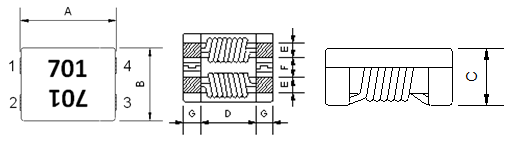

Dimension
| Size | A(mm) | B(mm) | C(mm) | D1(mm) | D2(mm) | E(mm) |
| 2012 | 2.0±0.2 | 1.2±0.2 | 1.2±0.2 | 0.55±0.1 | 0.46±0.1 | 0.15±0.1 |
3216 | 3.2±0.2 | 1.6±0.2 | 1.9±0.2 | 0.5±0.1 | 0.5±0.1 | 0.15±0.1 |
Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
7060 | 7.0±0.5 | 6.0±0.5 | 3.8 max. | 3.5 typ. | 1.5±0.5 | 1.5±0.5 | 1.7±0.5 |
Part Numbering
FWCM | 2012 | F | 2 | S | F | - | 900 | T | 04 |
A | B | C | D | E | F | G | H | I |
 | A: | Series |
| B: | Dimension |
| C: | Material (Ferrite ) |
| D: | Number of Lines (2=2 lines ) |
| E: | Type ("S=One Circuit Type ,N=Unshielded" ) |
| F: | Lead free |
| G: | Impedance (900=90Ω ) |
| H: | Packaging ("T=Taping and Reel,B=Bulk" ) |
| I: | Rated Current (04=400mA ) |
| Part Number | Common mode Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current. (mA) | Rated Volt. (Vdc) | Withstand Volt. (Vdc) | IR (Ω) min. |
|---|---|---|---|---|---|---|---|
| FWCM2012F2SF-670T04 | 67±25% | 100 | 0.25 | 400 | 50 | 125 | 10M |
| FWCM2012F2SF-900T04 | 90±25% | 100 | 0.3 | 400 | 50 | 125 | 10M |
| FWCM2012F2SF-121T04 | 120±25% | 100 | 0.3 | 400 | 50 | 125 | 10M |
| FWCM2012F2SF-161T03 | 160±25% | 100 | 0.35 | 350 | 50 | 125 | 10M |
| FWCM2012F2SF-181T03 | 180±25% | 100 | 0.35 | 350 | 50 | 125 | 10M |
| FWCM2012F2SF-201T03 | 200±25% | 100 | 0.4 | 300 | 50 | 125 | 10M |
| FWCM2012F2SF-221T03 | 220±25% | 100 | 0.4 | 300 | 50 | 125 | 10M |
| FWCM2012F2SF-261T03 | 260±25% | 100 | 0.4 | 300 | 50 | 125 | 10M |
| FWCM2012F2SF-361T03 | 360±25% | 100 | 0.5 | 300 | 50 | 125 | 10M |
| FWCM3216F2SF-900T04 | 90±25% | 100 | 0.3 | 400 | 50 | 125 | 10M |
