FBPH

Product Description

1. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

2. Operating temperature-40~+125℃ (Including self - temperature rise)


尺 寸 详细参数 规 格

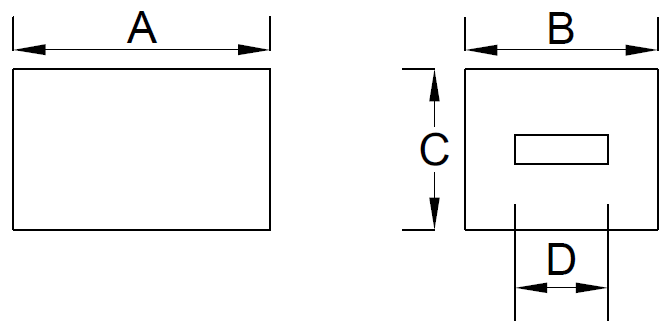

CORE   SIZE

A(mm)

B(mm)

C(mm)

D(mm)

4.00±0.25

3.10 ±0.15

2.50±0.15

1.50±0.15



FBPH

403025

R5

-

530

T

A

B

C

D

E




A: Series

B: Dimension

C: Material                        Ferrite Core

D: Impedance                          530=53Ω

E: Packaging                     T=Taping and Reel



Part   Number

Inductance

(μH)

 [100KHz/1V]

ELECTRICAL

REQUIREMENTS 1

ELECTRICAL

REQUIREMENTS   2

DCR

(mΩ) Max.

Rated Current(A)

Impedance (Ω)

Tolerance

(%)

Test   Frequency

(MHz)

Impedance (Ω)

Tolerance

(%)

Test   Frequency

(MHz)

△T=40℃

TYP.

△T=60℃

TYP.

FBPH403025R5-530T

0.46±20%

35

±25

25

53

±25

100

0.60

35.0(1)

15.0(2)

45.0(1)

18.0(2)
