1. This specification applies Low Profile Power Inductors.
2. 100% Lead(Pb) & Halogen-Free and RoHS compliant.
3. Operating temperature :-40~+125℃ (Including self - temperature rise)

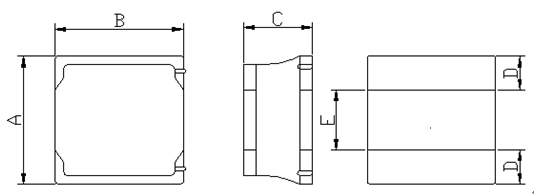

Series | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
THPC3015TF | 3.0±0.2 | 3.0±0.2 | 1.5 max | 1.0 ref | 1.0 ref |

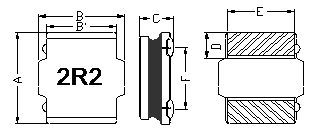

Series | A(mm) | B(mm) | B’(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
THPC6045NF | 6.0±0.3 | 6.0±0.3 | 4.8±0.2 | 4.2±0.3 | 1.7±0.3 | 4.5±0.3 | 4.25±0.3 |
THPC | 3015 | TF | - | 2R2 | M |
A | B | C | D | E |
A: Series
B: Dimension
C: Lead Free
D: Inductance 2R2=2.20 uH
E: Inductance Tolerance K=±10%, L=±15%,M=±20%,Y=±30%.
THPC | 6045 | NF | - | 2R2 | Y |
A | B | C | D | E
|
A: Series
B: Dimension A/B*C
C: Type
D: Inductance 2R2=2.20uh 100=10uh,101=100uh,102=1000uh
E: Inductance Tolerance M=±20%,Y=±30%.
marking direction cannot decide polarity. Color: Black, unidirectional.
magnetic shielding
| TAI-TECH Part Number | Inductance (uH) | Tolerance | Test Frequency (Hz) | SRF (MHz) min. | DCR(Ω) Typ. | DCR(Ω) Max. | I sat (A) typ. | I sat (A) Max. | I rms (A) typ. | I rms (A) Max. |
|---|---|---|---|---|---|---|---|---|---|---|
| THPC3015TF-1R0Y | 1 | ±30% | 1V100K | 100 | 0.03±20% | / | 2.2 | / | 2.2 | / |
| THPC3015TF-1R5Y | 1.5 | ±30% | 1V100K | 87 | 0.04±20% | / | 2 | / | 2 | / |
| THPC3015TF-2R2M | 2.2 | ±20% | 1V100K | 64 | 0.06±20% | / | 1.7 | / | 1.7 | / |
| THPC3015TF-3R3M | 3.3 | ±20% | 1V100K | 49 | 0.08±20% | / | 1.4 | / | 1.4 | / |
| THPC3015TF-4R7M | 4.7 | ±20% | 1V100K | 40 | 0.12±20% | / | 1.2 | / | 1.2 | / |
| THPC3015TF-6R8M | 6.8 | ±20% | 1V100K | 36 | 0.16±20% | / | 1 | / | 1 | / |
| THPC3015TF-100M | 10 | ±20% | 1V100K | 28 | 0.22±20% | / | 0.75 | / | 0.8 | / |
| THPC3015TF-150M | 15 | ±20% | 1V100K | 23 | 0.32±20% | / | 0.65 | / | 0.7 | / |
| THPC3015TF-220M | 22 | ±20% | 1V100K | 20 | 0.46±20% | / | 0.55 | / | 0.6 | / |
| THPC3015TF-330M | 33 | ±20% | 1V100K | 18 | 0.8±20% | / | 0.4 | / | 0.45 | / |
