1.Monolithic inorganic material construction.
2.Closed magnetic circuit avoids crosstalk.
3.S.M.T. type.
4.Suitable for reflow soldering.
5.Shapes and dimensions follow E.I.A. spec.
6.Available in various sizes.
7.Excellent solder ability and heat resistance.
8.High reliability.
9.This component is compliant with RoHS legislation and also support lead-free soldering.

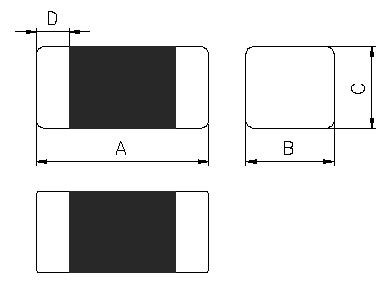

| Size | A(mm) | B(mm) | C(mm) | D(mm) |
| 0402 | 0.40±0.02 | 0.20±0.02 | 0.20±0.02 | 0.10+0.04/-0.03 |
| 0603 | 0.60±0.03 | 0.30±0.03 | 0.30±0.03 | 0.15±0.05 |
| 1005 | 1.00±0.10 | 0.50±0.10 | 0.50±0.10 | 0.25±0.10 |
| 1608 | 1.60±0.15 | 0.80±0.15 | 0.80±0.15 | 0.30±0.20 |
| 2012 | 2.00±0.20 | 1.25±0.20 | 0.85±0.20 | 0.50±0.30 |
| 2012 | 2.00±0.20 | 1.25±0.20 | 1.25±0.20 | 0.50±0.30 |
| 3216 | 3.20±0.20 | 1.60±0.20 | 1.10±0.20 | 0.50±0.30 |
| A: | Series | |
| B: | Dimension (L x W ) | |
| C: | Material (Lead Free Material ) | |
| D: | Impedance (121=120Ω ) | |
| E: | Packaging ("T=Taping and Reel,B=Bulk(Bags)" ) | |
| F: | Rated Current (02=200mA ) |
| Part Number | Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current (mA) max. |
|---|---|---|---|---|
| FCM1005MF-121T00 | 120±25% | 100 | 0.45 | 80 |
| FCM1005MF-221T00 | 220±25% | 100 | 0.6 | 50 |
| FCM1005MF-301T00 | 300±25% | 100 | 0.75 | 50 |
| FCM1608KF-300T07 | 30±25% | 100 | 0.2 | 700 |
| FCM1608KF-600T07 | 60±25% | 100 | 0.2 | 700 |
| FCM1608KF-121T06 | 120±25% | 100 | 0.25 | 600 |
| FCM1608KF-151T06 | 150±25% | 100 | 0.25 | 600 |
| FCM1608KF-221T05 | 220±25% | 100 | 0.3 | 550 |
| FCM1608KF-301T05 | 300±25% | 100 | 0.35 | 500 |
| FCM1608KF-471T03 | 470±25% | 100 | 0.45 | 350 |
