1.Monolithic inorganic material construction.
2.Low DC resistance structure of electrode to prevent wasteful electric power consumption.
3.Closed magnetic circuit avoids crosstalk.
4.Suitable for flow and reflow soldering.
5.Shapes and dimensions follow E.I.A. spec.
6.Available in various sizes.
7.Excellent solder ability and heat resistance.
8.High reliability.
9.This component is compliant with RoHS legislation and also support lead-free soldering.

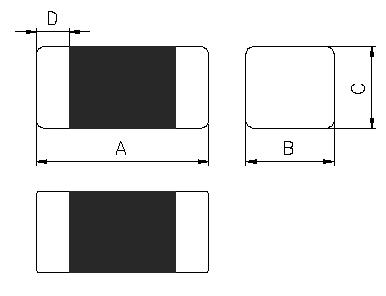

| Size | A(mm) | B(mm) | C(mm) | D(mm) |
| 0603 | 0.60±0.03 | 0.30±0.03 | 0.30±0.03 | 0.15±0.05 |
| 1005 | 1.00±0.10 | 0.50±0.10 | 0.50±0.10 | 0.25±0.10 |
| 1606 | 1.60±0.15 | 0.80±0.15 | 0.60±0.15 | 0.30±0.20 |
| 1608 | 1.60±0.15 | 0.80±0.15 | 0.80±0.15 | 0.30±0.20 |
| 2012 | 2.00±0.20 | 1.25±0.20 | 0.85±0.20 | 0.50±0.30 |
| 3216 | 3.20±0.20 | 1.60±0.20 | 1.10±0.20 | 0.50±0.30 |
| 4516 | 4.50±0.20 | 1.60±0.20 | 1.60±0.20 | 0.50±0.30 |
| 4532 | 4.50±0.20 | 3.20±0.20 | 1.50±0.20 | 0.50±0.30 |

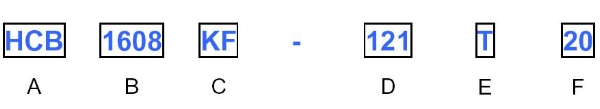

| A: | Series | |
| B: | Dimension (L x W ) | |
| C: | Material (Lead Free Material ) | |
| D: | Impedance (121=120Ω ) | |
| E: | Packaging ("T=Taping and Reel,B=Bulk(Bags)" ) | |
| F: | Rated Current (20=2000mA ) |
| Part Number | Impedance (Ω) | Test Frequency (MHz) | DC Resistance (Ω) max. | Rated Current (mA) max. |
|---|---|---|---|---|
| HCB3216KF-601T20 | 600±25% | 100 | 0.1 | 2000 |
| HCB4516KF-600T60 | 60±25% | 100 | 0.01 | 6000 |
| HCB4516KF-800T30 | 80±25% | 100 | 0.04 | 3000 |
| HCB4532KF-800T60 | 80±25% | 100 | 0.01 | 6000 |
| HCB4532KF-121T50 | 120±25% | 100 | 0.02 | 5000 |
| HCB4532KF-131T30 | 130±25% | 100 | 0.04 | 3000 |
| HCB4532KF-151T50 | 150±25% | 100 | 0.02 | 5000 |
| HCB4532MF-681T40 | 680±25% | 100 | 0.03 | 4000 |
| HCB4532MF-132T30 | 1300±25% | 100 | 0.06 | 3000 |
