FMPV	0503	SPV	-	4R7	M	N	-	D
A	B	C		D	E	G		F

A: Series

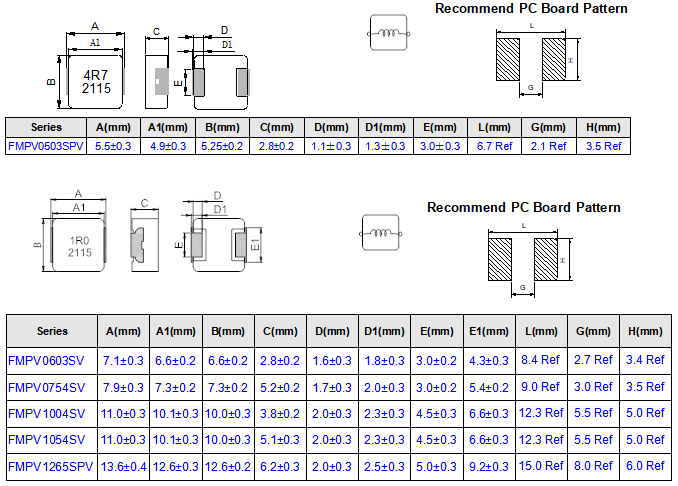

B: Dimension                        BxC
C: Type                                 Standard.V:vehicle.
D: Inductance                       4R7=4.70uH
E: Inductance Tolerance       K=±10%，L=±15%，M=±20%，N=±25%，Y=±30%

F、G: Code                           Marking direction cannot decide polarity.Marking: Black.4R7and 2132(21:YY,32:WW,

                                              follow production date).

搜索： FMPV0503SPV FMPV0504SPV FMPV0603SV FMPV0754SV FMPV1004SV FMPV1054SV FMPV1006SPV FMPV1265SPV

Part Number	Inductance L0 (uH)±20%	I rms ( A ) Typ	I rms ( A ) Max	I sat ( A ) Typ	I sat ( A ) Max	DCR(mΩ) Typ	DCR(mΩ) Max
FMPV0503SPV-R10MN-D	0.1	20	17	33	30	1.5	1.8
FMPV0503SPV-R33MN-D	0.33	17	15	15	13	3.9	4.7
FMPV0503SPV-R36MN-D	0.36	16	14	14.5	12.5	4.3	5.2
FMPV0503SPV-R68MN-D	0.68	12	11	11.7	10	8.5	9.7
FMPV0503SPV-1R0MN-D	1	10.5	9.5	8	6.7	10	11.5
FMPV0503SPV-1R5MN-D	1.5	8.5	7.6	6.5	5.7	15.4	17.7
FMPV0503SPV-2R2MN-D	2.2	7.5	6.6	5.8	4.8	20	23
FMPV0503SPV-3R3MN-D	3.3	6	5.5	5.4	4.5	31	36
FMPV0503SPV-4R7MN-D	4.7	5.2	4.4	4.5	4	49	57
FMPV0503SPV-5R6MN-D	5.6	4.4	3.8	4.3	3.8	61	71
